HOTON Scissor Lift Series

---Our product,Your face

Product Name：Super Thin large platform Scissor Lift
Product Type：HC635M418-HC655M418
Product Features ：3.5T，4T,4.5T,5.5T

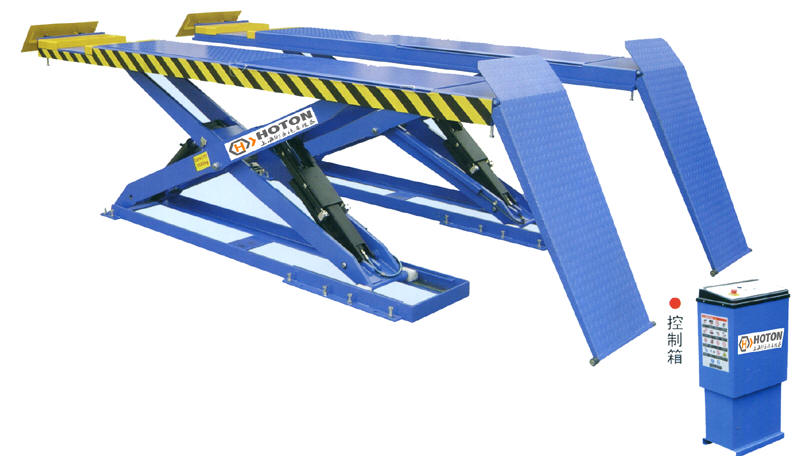

Product Picture ：

Product Introduce：

1 luxury type scissor type of ultra-thin structure, superior performance.
2 level is accurate and adjustable, and suitable for all kinds of high precision four wheel alignment.
3 imported hydraulic, electrical and pneumatic components, equipment, stable and reliable operation.
4 pneumatic self locking insurance and anti explosion structure, automatic control to open, to ensure safety.
5 clever unique sliding system, platform compact, ground type lift.
6equipped with two trolley guide rails, and can be equipped with two lifting trolley.
7 front wheel steering wheel (optional parts) position adjustable, suitable for a variety of models.
8 hydraulic lock and mechanical double tooth insurance claw double safety insurance device, the decline is automatically open, through the lock operation can make the insurance claw to achieve the positioning, safe and reliable.

Specifications

Specifications	HC635M418	HC640M418	HC645M418	HC655M418
Maximum lifting weight	3500KG	4000KG	4500KG	5500KG

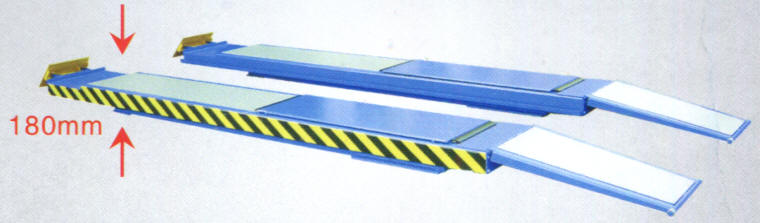

minimum height	180MM	180MM	180MM	180MM
platform length	4000MM	4500MM	5030MM	5030MM
platform width	635MM	635MM	635MM	635MM
platform lifting height	1860MM	1860MM	1860MM	1860MM
working voltage	380/220V	380/220V	380/220V	380/220V
Gross weight	1800kg	1980kg	2250kg	2650kg
Second lifter weight	2t	2t	3t	3t
Second lifter height	375mm	375mm	375mm	375mm

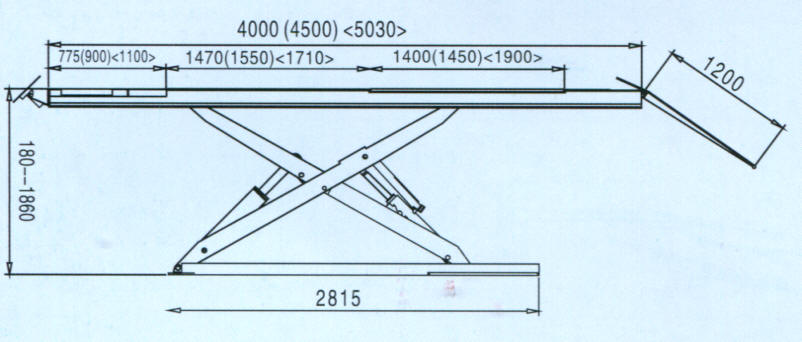

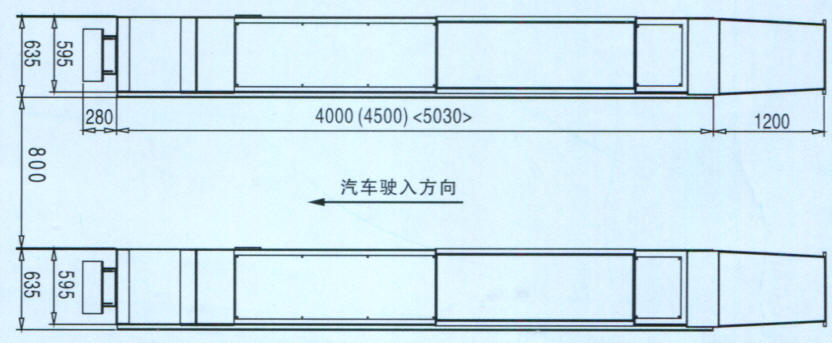

Dimensions

HC635M418 HC640M418 HC645M418 HC655M418

Other details:

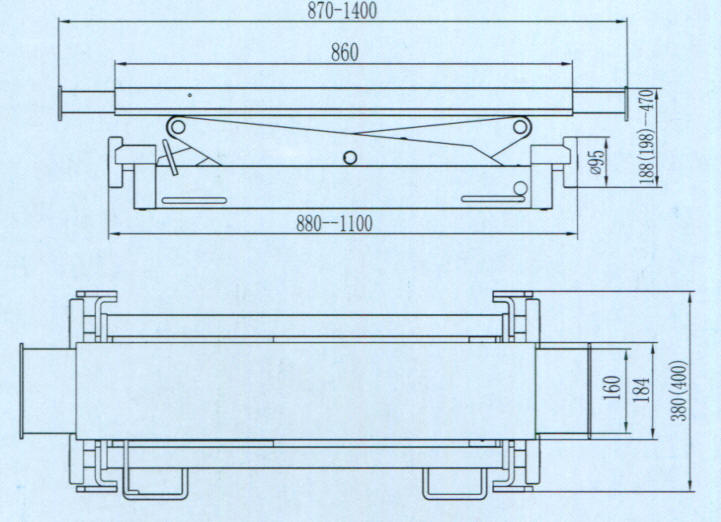

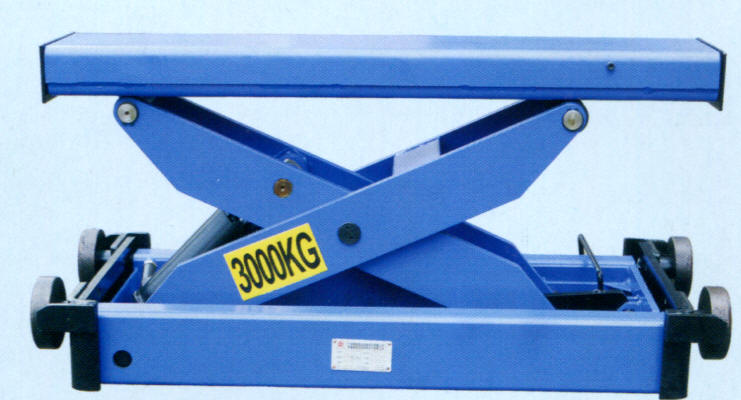

Second lifter：2T/3T/5T/7T

Packing details:
Installation case:
