Professional, Reliable, Affordable
Durable Target:	Passive target demanding no calibration Easy operation and maintenance due to no request for cable connection and battery charging Convenient runout compensation procedure
Precise measurement:	Stable light source Dynamic compensation measurement Real-time display of data makes the adjustment easier Flexible measuring modes give easy access to users of traditional wheel aligners
User friendly:	Advanced graph processing, mode identification and computer visual technology   Perfect 3D model on the base of Kinesiology, optical measurement and automotive technology
HC211 3D Wheel Aligner is the latest 3D graphic wheel aligner which can establish movement models and therefore provides full-range aligning service through visual measurement technology. HC211 3D Wheel Aligner features complete functionalities, reasonable interface, automatic monitoring and operating tips to eliminate improper operation. The equipment is capable of convenient alignments with real time adjustment of front and rear wheels, and a full range of chassis diagnostic parameters.

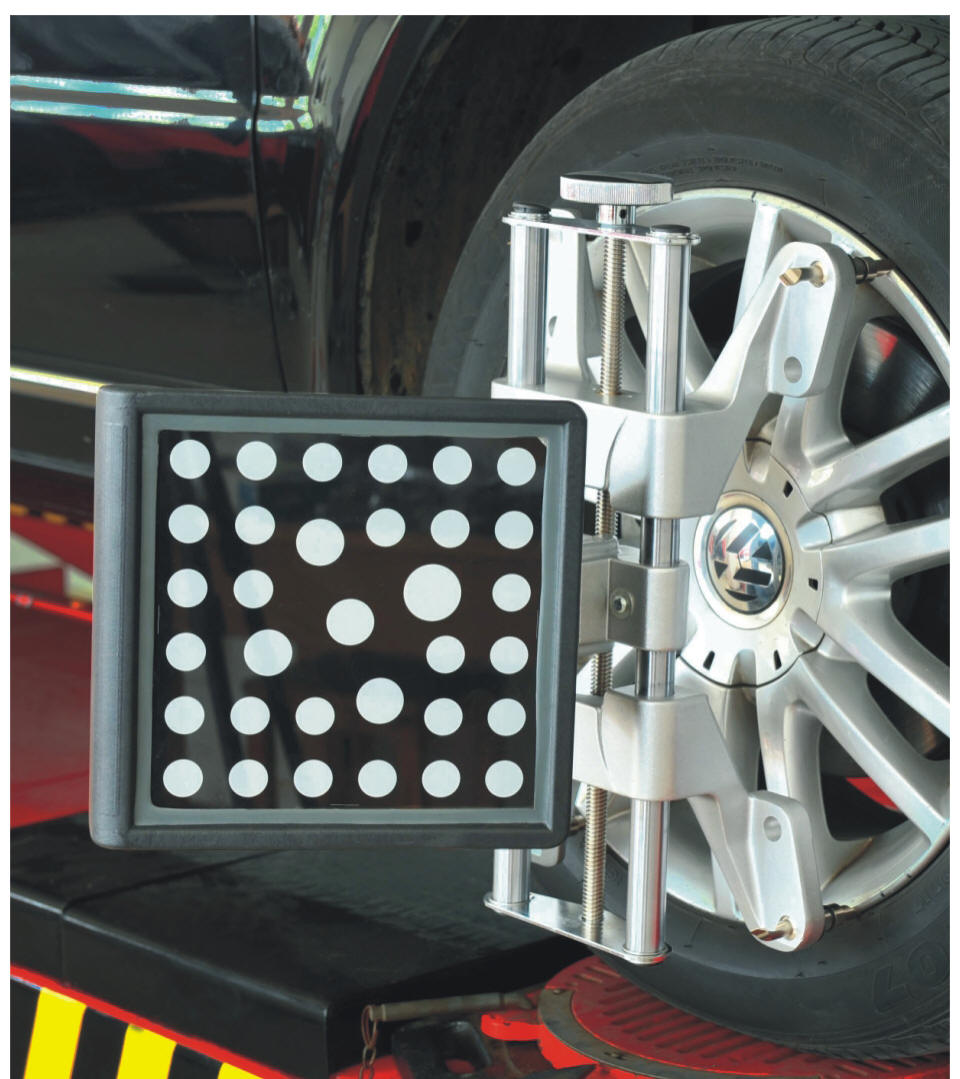

Durable target：
* Passive target demanding no periodic calibration
* Easy operation and maintenance due to no request for cable connection and battery charging
* Convenient runout compensation procedure with no need for reference
Precise Measurement：
* Stable light source without shine interface disturbance
* Dynamic compensation measurement
* Real-time display of data makes the adjustment easier
* Flexible measuring modes to give easy access for users of traditional wheel aligners
Use Friendly：
* Advanced graph processing, mode identification and computer visual technology
* Perfect 3D model on the base of Kinesiology, optical measurement and automotive technology
Item Measurement Range
Total toe-in 0~±40°
Camber 0~±20°
Caster 0~±25°
Kingpin Inclination 0~±25°
Maximal wheelbase it can Measure 4000mm
Requrements on Surroundings:
Ambient temperature: 0~50℃
Relative humidity: ≤85%

Wheel Alignment 4 Post Lift (Rated Capacity: 4 Ton) is used for lifting of various small and medium-sized vehicles with total weight below 4.0t in garage and workshop.
1.Designed based on the international standard, meeting the demand of the garage and workshop.
2.Driven by hydraulic cylinder in stable lifting and lowering.
3.Offering full-range mechanical safety protection by using the safety latches.
4.Connected by four steel cables; forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles.
5.Equipped with rolling jack, turntable and sideslip, suitable for wheel alignment.
6.Adjustable distance between runways to accommodate different wheel track.
*Load capacity(kg) 4000
*Lifting height(mm) 1850
*Raising time(s) t≤60
*Lowering time(s) 20≤t≤40
*Power(kw) 2.2
*Passing width(mm) 3045
*Equipment width(mm) 3445
*Equipment height(mm) 2172
*Runway length(mm) 4240
*Runway width(mm) 500
*Max wheel base(mm) 1950
*Min wheel base(mm) 950
*Lowest height(mm) 220
Rolling jack：
*Capacity(kg): 2000
Lifting height(mm) 250
Raising time(s) t≤30
Lowering time(s) 10≤t≤20
