HC435T Park Lift (Item:24701)

Feature:

. The design of four-post carport lift suits for parking of various places such as enterprise and public institution, office building, family, villa, residential property manage-ment, hotel and other places, which can be designed according to different areas and assembled in different angles. The lifts can not be used for another purpose, especially not suit for washing and spaying working, in addition, lifted load can not be more than lifting capacity.
. The machine takes one room and has two parking places, saving precious spaces,which has multiple-purpose such as commercial and family use.

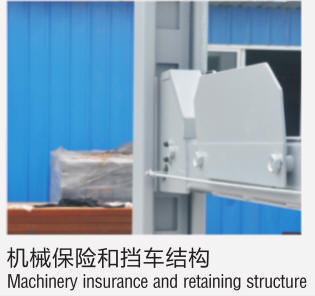

. The machine has double safeties, machinery and breaking rope, which is a safer parking place for your car.
. The machine takes hydraulic driving with low noise and reliable operation.
. The machine lifts with short time, taking car rapidly with 60 seconds in general.
. The machine takes advanced spraying process, the color of machine is beautiful,
green environmental protection without lead; the machine with strong anti-corrosion capability is durable.
. Assembly is easy, needn’t to be fixed in the ground, so it can be moved back and forth (Attention: can not allowed to be moved if there is car packing, and the ground must be flat if do not fixed)
Specifications:

  • Model
  • HC435T
  • Lifting weight
  • 3000kg (6600 lb)
  • Max. Lifting height
  • 1800mm (70.9”)
  • Rise time
  • 50s ~ 60s
  • Post height
  • 2076mm ( 81.8)
  • Runway width
  • 494mm (19.5”)
  • Ramp length
  • 950mm (37.4”)
  • Electricity supply
  • 380V/220V

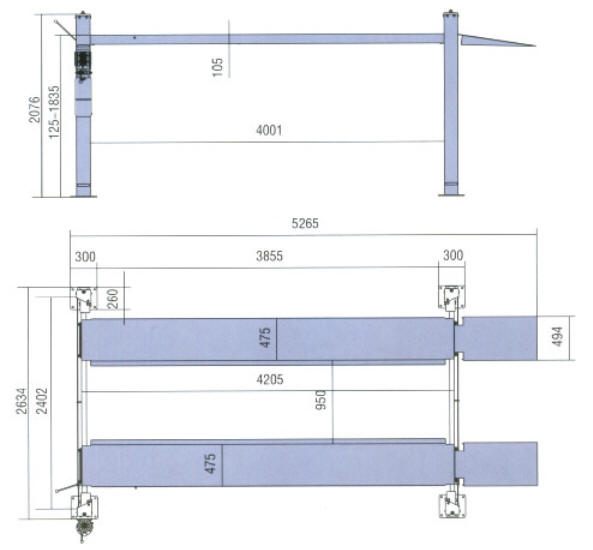

Dimensions:


Package Information:
Metal frame and carton
More Detail:
