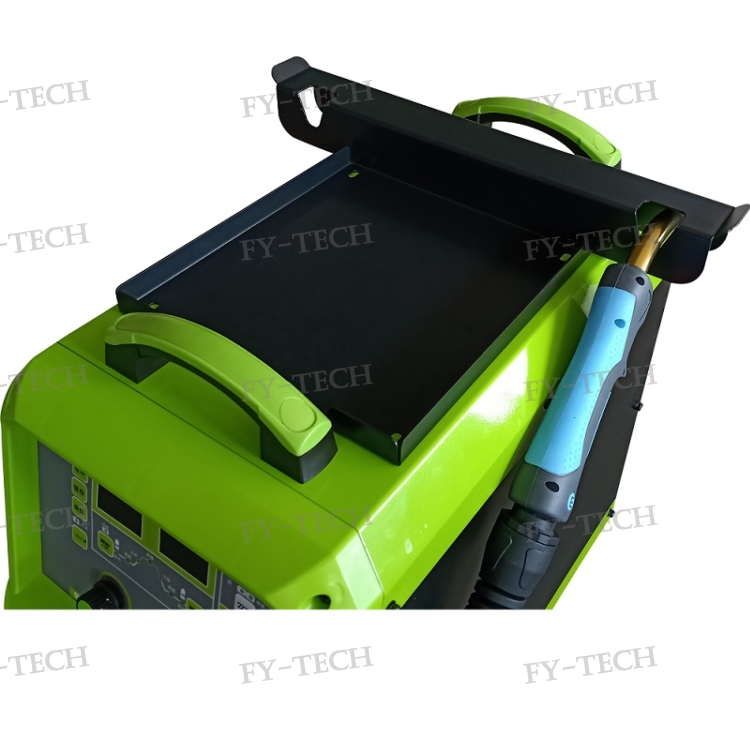

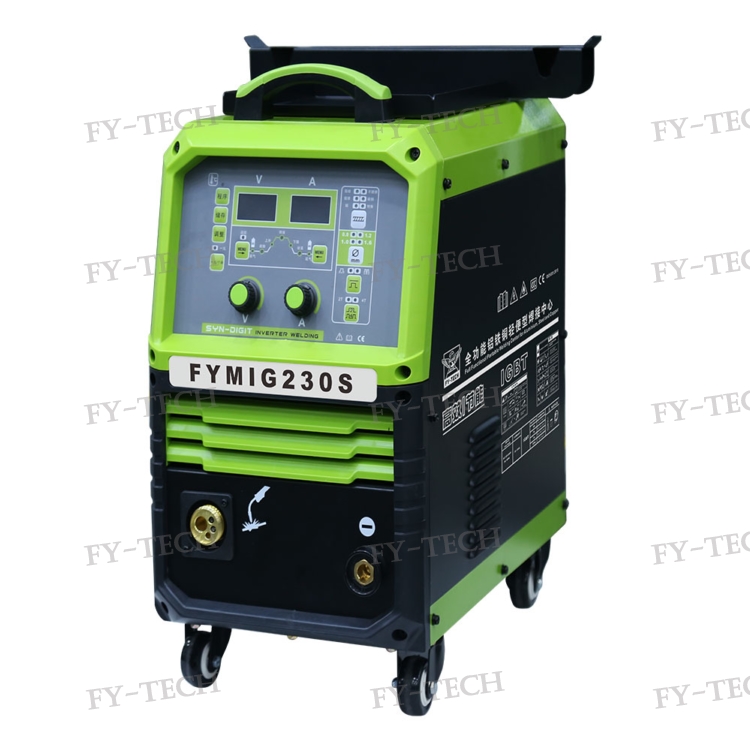

Portable Welding Machine for Aluminium, Steel and Copper FYMIG230S

-: Energy-efficient IGBT inverter pulsed and soft switching control technology.
-: Closed-loop feedback technology offers constant voltage output and strong resistance to voltage fluctuation (±15%).
-: Controlled by electronic reactor, with steady welding, less spatter and welding deformation.
-: Soft and smooth wire feeding in arcing and 100% burn back ensure a successful and effective arcing starting.
-: Compact size, light weight, easy operation, economical and practical.
　

Specifications:

Technical Data

Input Voltage
Min Capacity of Power Grid
Min Capacity of Generator
Fuse Input Protection
Circuit Breaker Input Protection
Input Cable
Output Cable
Earth Cable
　

AC380V/3PH or AC220V/1PH
10KVA or 6.4KVA/6.2KVA
15KVA or 8KVA
12A or 30A/10A
20A or 32A/15A
≥3㎜²
25㎜²
≥1.5㎜²
