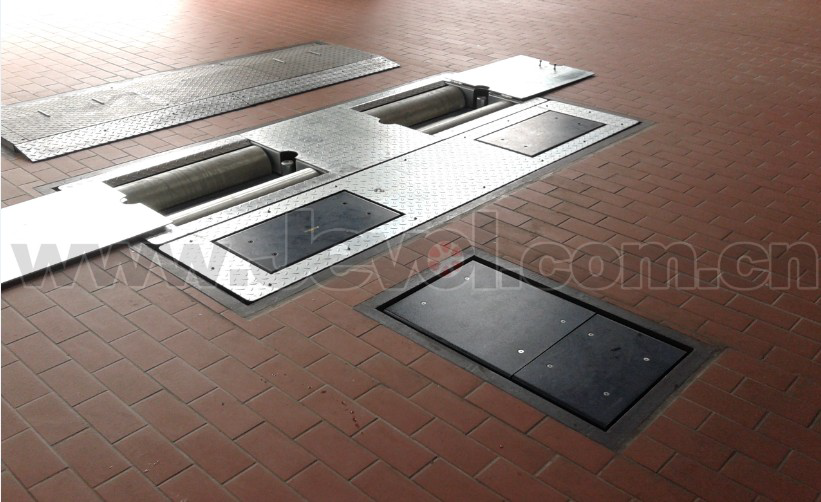

TSR5700/5in1 Vehicle Test Lane

Feature:
Check vehicle brake performance
Check vehicle suspension system
Check vehicle sideslip
Check vehicle speed
Check vehicle Weight

1, patented technology to produce sticky sand drum brake units, 200,000 times to ensure detection of life, the roller surface friction coefficient of 0.85 or more, the test speed of up to 2.5km / h;
2, the brake lock sets high efficiency variable speed motor (3.0kw / 380v), durable;
3, suspension sets imported from Taiwan vibration couplings, vibration can be run without any trouble-free long-term work;
4, the measured tire lateral slide having elastic force release device, effectively improve the detection of the amount of cars cornering precision and accuracy;
5, testing with a maximum axle load by as 4000kg; industrial computer control:
6, can be configured headlight tester, exhaust gas analyzers, smoke meters, sound level meter and networking interface;
7, the detection system can be manually single station, semi-automatic, fully automatic operation detection;
8, can automatically print test results and determination, according to time, license plates, models such as automatic detection of fast query data and records;
9, the system built country the latest national standards, the user can change the detection criteria of value;
10, signal data acquisition system speed, while the foot brake system software interface edge painting braking curves, the suspension system while working motor software interface side painting a suspension vibration damping curve

Specifications:

Items
Brake Tester
Suspension Tester
Sideslip Tester
Speedometer Tester
Max axle load
3T
3T
3T
3T
Testing Speed
2.5km/h
/
3~5 km/h
40km/h
Power supply
380V 50HZ
380V / 50HZ
220V / 50HZ
220V / 50HZ
Motor
3kw×2
1.5 KW X 2
/
/
Roller diameter
245mm
/
/
190mm
Roller length
750mm
/
/
750mm
Testing range
0-9000N
/
±15mm
/
Adhesion coefficient
0.8
/
/
0.8
Frequency
/
23HZ
/
/
Amplitude
/
6mm
/
/
Air pressure
/
/
/
0.8Mpa
Dimensions
(L×W×H)
2500X750X350mm
2500X550X356mm
800X460X60
mm
2500X750X350
mm

Dimensions:


Package Information:
Metal frame and carton
