HOTON Car Park Lift Series

---Our product,Your face

Feature:

1. The length of the running main board is 4.8 meters, the load is 2.7 tons, Sub lift board is 4.2 meters, the load is 2.7 tonsand it is Electron unlocked;
2. First Lifting net height is 1.8 meters+second 1.6m , and the outer width of the car board is 1.9 meters;
3. Equipment dimensions: 6550 * 4200 * 2682;
4. Fashionable appearance, CNC plasma cutting processing, exquisite and beautiful, manual unlocking, simple and practical, low failure rate;
5. CE standard voltage system, 24V output voltage, voltage: 20V / 380V optional;
6. Motor power 2.2KW*2, aluminum case brand motor;
7. Rise time is about 50S and fall time is about 40S;
8. Process: shot blasting / spraying;
9. Space height requirement: ≥3.6 meters;

Specifications

• Model
• HCP422
• Feature
• Electron release
• Lifting Capacity
• 2700kg
• Lifting Height
• 1800mm+1600mm
• Machine Height
• 4200mm
• Machine Width
• 2700mm
• Rise time
• 50s
• Drop time
• 22s
• Power of motor
• 2.2kw
• Power Supply
• 220V/380V 1/3 PHASE

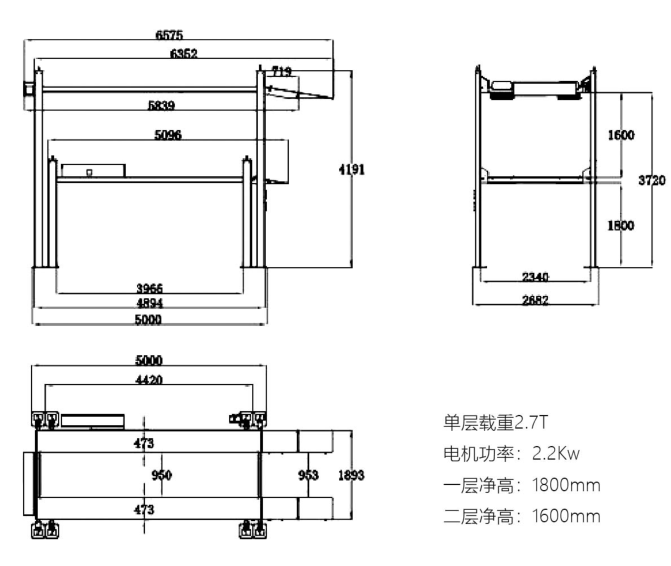

Dimensions

Package Information
Metal frame and carton
1# 4850x700x500mm
1# 4850x700x500mm
900kg/960kg
8PCS-20ft / 20 PCS-40ft
