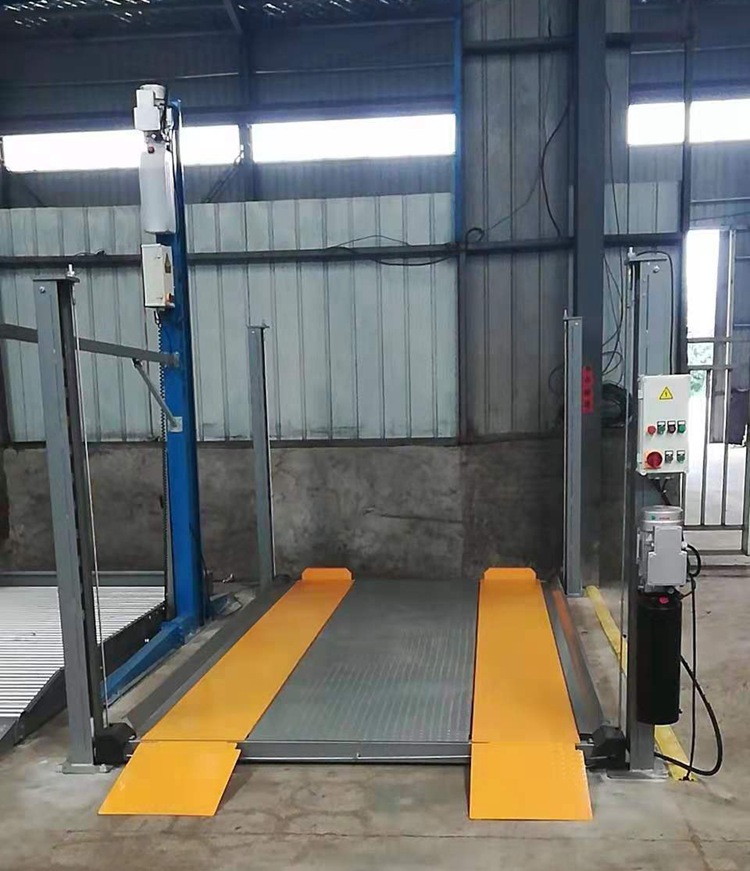

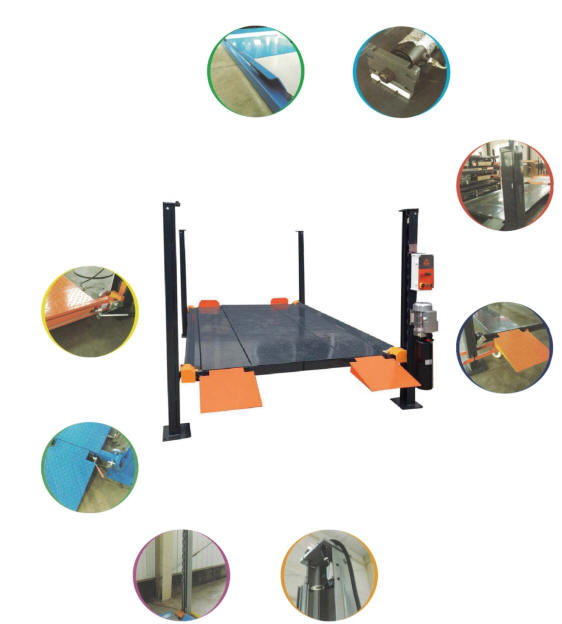

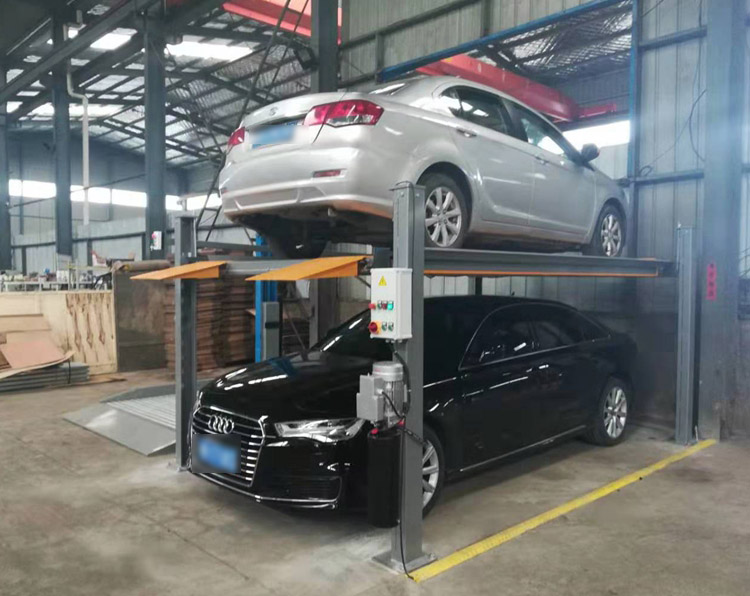

HCP401 Four Post Park Lift

Feature:

1. The length of the running board is 4.2 meters, the load is 2.7 tons, and it is manually unlocked;
2. Lifting height is 1.8 meters, and the width of the outside of the car board is 1.95 meters;
3. Equipment dimensions: 4930 * 2700 * 2150;
4. Fashionable appearance, CNC plasma cutting processing, exquisite and beautiful, manual unlocking, simple and practical, low failure rate;
5. CE standard voltage system, 24V output voltage, voltage: 20V / 380V optional;
6. Motor power 2.2KW, aluminum case brand motor;
7. Rise time is about 50S and fall time is about 40S;
8. Process: shot blasting / spraying;
9. Space height requirement: ≥3.6 meters


Specifications

  • Model
  • HCP401
  • Feature
  • Manual release
  • Lifting Capacity
  • 2700kg
  • Lifting Height
  • 1800mm
  • Machine Height
  • 2150mm
  • Machine Width
  • 2700mm
  • Rise time
  • 50s
  • Drop time
  • 22s
  • Power of motor
  • 2.2kw
  • Power Supply
  • 220V/380V 1/3 PHASE

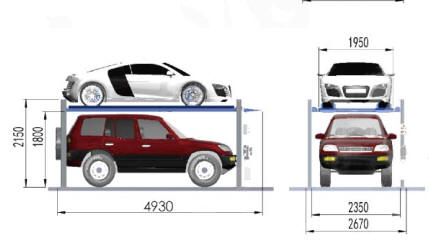

Dimensions



Package Information
Metal frame and carton
1# 4850x700x500mm
800kg/860kg
12PCS-20ft / 24 PCS-40ft
