HOTON Car Park Lift Series

---Our product,Your face

Feature:

1. The standard depth of the pit is 2.5 meters, and the load of each layer is 2.3 tons.
2. The parking height of the negative floor is 1.8 meters, and the width of the vehicle on the negative floor is 2.1 meters.
3. Equipment dimensions: 5400 * 2900 * 2500;
4. The first floor of the vehicle is warm in winter and cool in summer, and is anti-theft and rainproof.
5. Button operation, voltage: 380V;
6. Motor power: 3.7KW, reducer sprocket lift;
7. Rise time is about 40S and fall time is about 35S;
8. Process: shot blasting;
9. Space height requirement: ≥3.6 meters;

Specifications

• Model
• HCP303
• Feature
• Electron release
• Lifting Capacity
• 2300kg
• Lifting Height
• 1800mm
• Machine Height
• 2500mm
• Machine Width
• 2900mm
• Rise time
• 50s
• Drop time
• 22s
• Power of motor
• 2.2kw
• Power Supply
• 220V/380V 1/3 PHASE

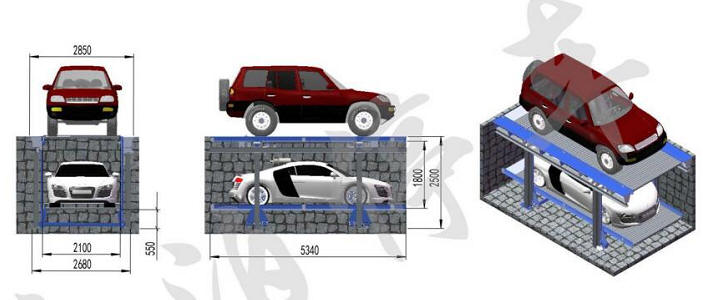

Dimensions

Package Information
Metal frame and carton
1# 2900x450x1900mm
800kg/860kg
4PCS-20ft / 8 PCS-40ft
