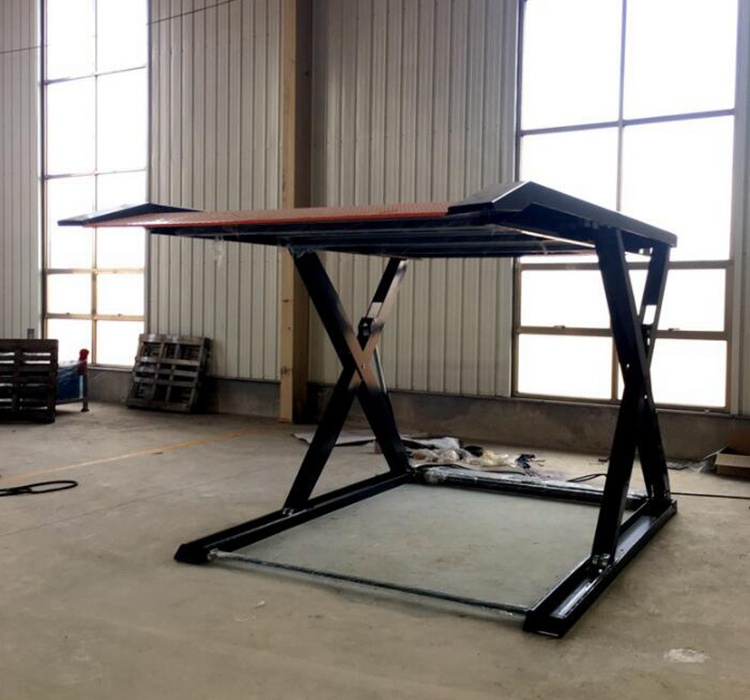

HCP302 Scissor Park lift

Feature:

1. European and American standards, 100,000 experiments, quality assurance.
2. The floor area is small, and the number of parking spaces can be changed according to the parking lot.
3. It adopts single-stage double-cylinder lifting, automatic adjustment of balance, low noise and stable operation.
4. The car platform adopts hot-dip galvanizing or plastic spraying process, beautiful color and durable
5. The side beam is bent to collect the water and oil dripping from the vehicle;
6, patented products, American technology, high-tech products that have obtained many domestic and foreign certifications.
7, easy to install, suitable for home, 4S shops, public or underground parking, but the height of the underground clear space is greater than 3.6 meters


Specifications

型 号        Model No

HCP302

举升重量      Lifting capacity

6000lbs/2500kgs

停车高度     car parking height

2000mm

总高度       Overall height

2165mm

总宽度     Overall  width

2450mm

额定油压      Rated oil pressure

18Mpa

车道宽度      Drive through

2000mm

容车数量   car parking quantity

2*n

上升/下降时间  Rise/Drop time

60S/50S

电源 / 功率     Motor capacity / Power

220V/380V /2.2kw

operation mode操作方式

Ten keys, electric lock release,manual
