HOTON Car Park Lift Series

---Our product,Your face

Feature:

1. The column height is 3.5m, and the load is 2.7t;
2. The lifting height is 2.1 m, the width of the carriage plate is 2.1 m, the parking height is level 6, and the fall protection is level 6;
3. Overall dimension of equipment: 4530 * 2560 * 3510;
4. Fashionable appearance, laser cutting, delicate and beautiful;
5. Meet CE standard voltage system, 24V output voltage, voltage: 220V / 380V optional;
6. Motor power 2.2kw, aluminum shell brand motor;
7. The rise time is about 50s, and the fall time is about 40s;
8. Process: shot blasting / spraying;
9. Space height requirement: ≥ 3.6m;
10. It can be used in combination, saving space and being more stable.

Specifications

• Model
• HCP203
• Feature
• Electron release
• Lifting Capacity
• 2700kg
• Lifting Height
• 2100mm
• Machine Height
• 3510mm
• Machine Width
• 2560mm
• Rise time
• 50s
• Drop time
• 22s
• Power of motor
• 2.2kw
• Power Supply
• 220V/380V 1/3 PHASE

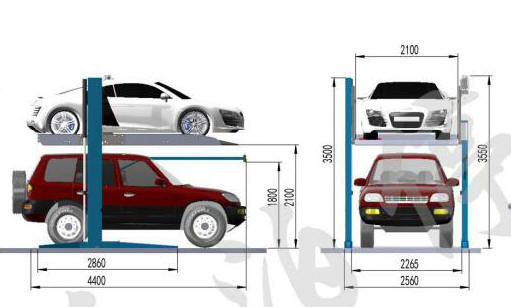

Dimensions

Package Information
Metal frame and carton
1# 3850x800x8000mm
1060kg/1160kg
8PCS-20ft / 20 PCS-40ft
